DDR5-5600 RDIMM
32 GB
- 5600 MT/s
- Speed
- 1Rx4
- Organization
- CL46
- Latency
- 1.1 V
- Voltage
DDR4 and DDR5, specified for duty.
Two generations, three capacities each, one production standard. Pick the line, check the table, send the configuration.
In production
- 288-pin RDIMM
- JEDEC organization
- 5-year support
SHIPPING NOW

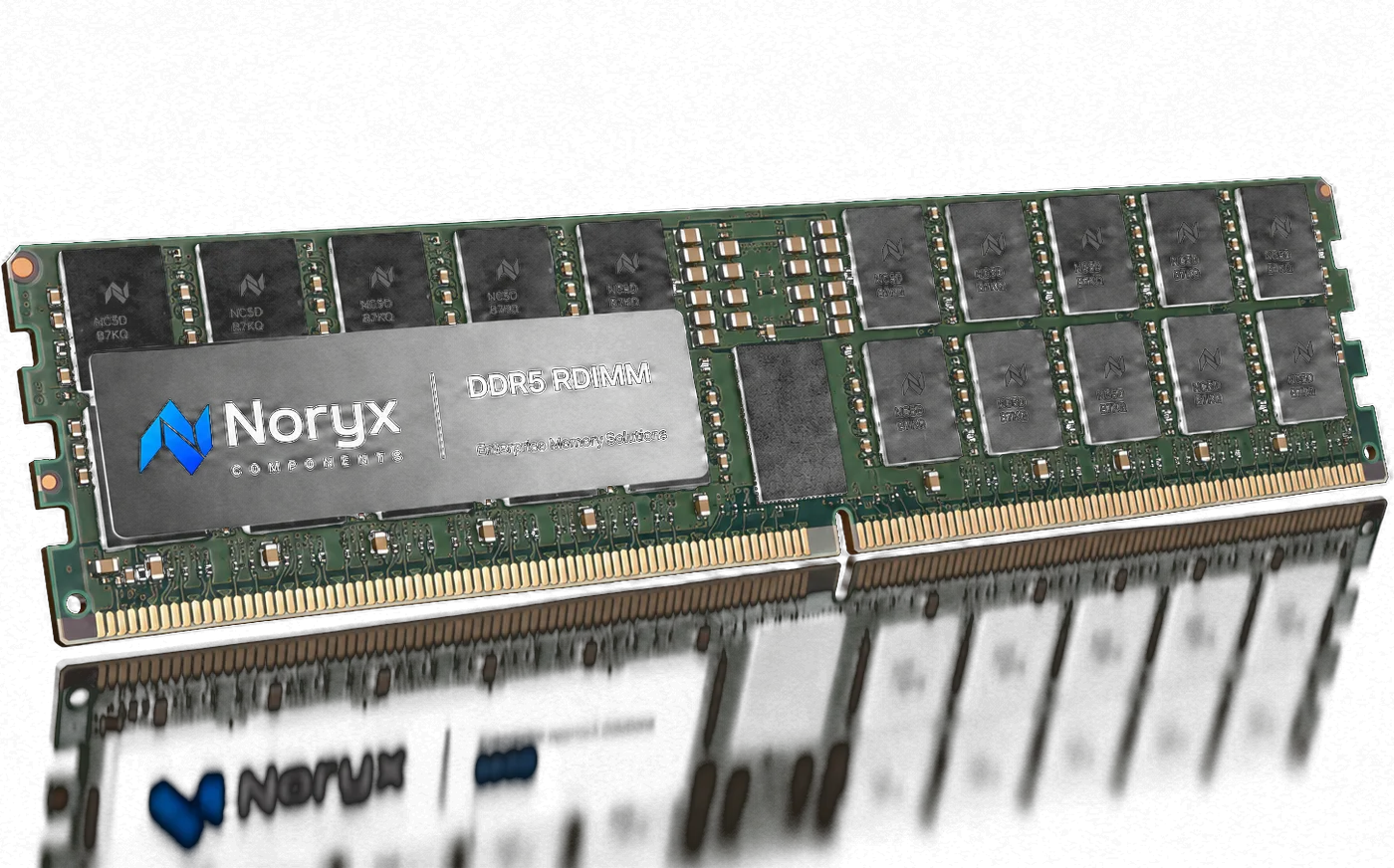

DDR5 ECC RDIMM
Fifth-generation registered modules for current Intel Xeon and AMD EPYC platforms. Every module is burn-in tested before it leaves the line.
DDR5-5600 RDIMM Most requested
64 GB
- 5600 MT/s
- Speed
- 2Rx4
- Organization
- CL46
- Latency
- 1.1 V
- Voltage
DDR5-5600 RDIMM
128 GB
- 5600 MT/s
- Speed
- 2Rx4, 32 Gb die
- Organization
- CL46
- Latency
- 1.1 V
- Voltage
DDR5 series specifications
Registered ECC modules on JEDEC DDR5 RDIMM organization. Part numbers are NORYX internal and map to the configuration below.
| Specification | 32 GB | 64 GB | 128 GB |
|---|---|---|---|
| Part number | NX5-32R56 | NX5-64R56 | NX5-128R56 |
| Data rate | 5600 MT/s | 5600 MT/s | 5600 MT/s |
| Organization | 1Rx4 | 2Rx4 | 2Rx4 (32 Gb die) |
| CAS latency | CL46 | CL46 | CL46 |
| Voltage | 1.1 V | 1.1 V | 1.1 V |
| Form factor | 288-pin RDIMM | 288-pin RDIMM | 288-pin RDIMM |
| Module height | 31.25 mm | 31.25 mm | 31.25 mm |
| Error correction | On-die ECC + side-band ECC | On-die ECC + side-band ECC | On-die ECC + side-band ECC |
| Operating temperature | 0 to 85 °C (Tcase) | 0 to 85 °C (Tcase) | 0 to 85 °C (Tcase) |
| Platforms | Intel Xeon 4th/5th gen, AMD EPYC 9004/9005 | Intel Xeon 4th/5th gen, AMD EPYC 9004/9005 | Intel Xeon 4th/5th gen, AMD EPYC 9004/9005 |
Compatibility is confirmed per platform before shipment. Other speed bins and single-rank variants are available on request.
DDR4 ECC RDIMM
Proven fourth-generation modules for the installed base of Xeon Scalable and EPYC servers, industrial controllers and storage heads.
DDR4-3200 RDIMM
32 GB
- 3200 MT/s
- Speed
- 2Rx8
- Organization
- CL22
- Latency
- 1.2 V
- Voltage
DDR4-3200 RDIMM
64 GB
- 3200 MT/s
- Speed
- 2Rx4
- Organization
- CL22
- Latency
- 1.2 V
- Voltage
DDR4-3200 3DS RDIMM
128 GB
- 3200 MT/s
- Speed
- 2S2Rx4
- Organization
- CL22
- Latency
- 1.2 V
- Voltage
DDR4 series specifications
Registered ECC modules on JEDEC DDR4 RDIMM organization for the current installed base.
| Specification | 32 GB | 64 GB | 128 GB |
|---|---|---|---|
| Part number | NX4-32R32 | NX4-64R32 | NX4-128R32 |
| Data rate | 3200 MT/s | 3200 MT/s | 3200 MT/s |
| Organization | 2Rx8 | 2Rx4 | 2S2Rx4 (3DS) |
| CAS latency | CL22 | CL22 | CL22 |
| Voltage | 1.2 V | 1.2 V | 1.2 V |
| Form factor | 288-pin RDIMM | 288-pin RDIMM | 288-pin RDIMM |
| Module height | 31.25 mm | 31.25 mm | 31.25 mm |
| Error correction | Side-band ECC | Side-band ECC | Side-band ECC |
| Operating temperature | 0 to 85 °C (Tcase) | 0 to 85 °C (Tcase) | 0 to 85 °C (Tcase) |
| Platforms | Intel Xeon Scalable 2nd/3rd gen, AMD EPYC 7002/7003 | Intel Xeon Scalable 2nd/3rd gen, AMD EPYC 7002/7003 | Intel Xeon Scalable 2nd/3rd gen, AMD EPYC 7002/7003 |
Lower speed bins (2933, 2666 MT/s) are available for legacy platforms on request.
Need a speed bin we did not list?
Other data rates, single-rank variants and conformal coating are available on request.
Request a quote
No price lists and no distributors in between. Tell us the configuration and we come back with part numbers, availability and lead time.
- Part numbers and lead time in the first reply
- Samples available for qualification
- Shipping from Hong Kong to any destination
